ระบบวัดอุณหภูมิไฟเบอร์ออปติกสําหรับสวิตช์เกียร์

The point type fiber optic online temperature measurement system for switchgear adopts a เซ็นเซอร์อุณหภูมิใยแก้วนําแสงฟลูออเรสเซนต์ that can monitor the hot spot temperature inside the switchgear in real time. It can monitor the operating temperature of electrical equipment, especially the temperature of easily heated positions such as switchgear contacts, บัสบาร์, and electrical contacts. The fiber optic temperature measurement system is an important means of temperature rise warning and prevention of switchgear failure accidents caused by temperature rise. This allows switchgear temperature inspectors to detect the heating of equipment joints in the switchgear in advance, preventing more serious fires or power outages.

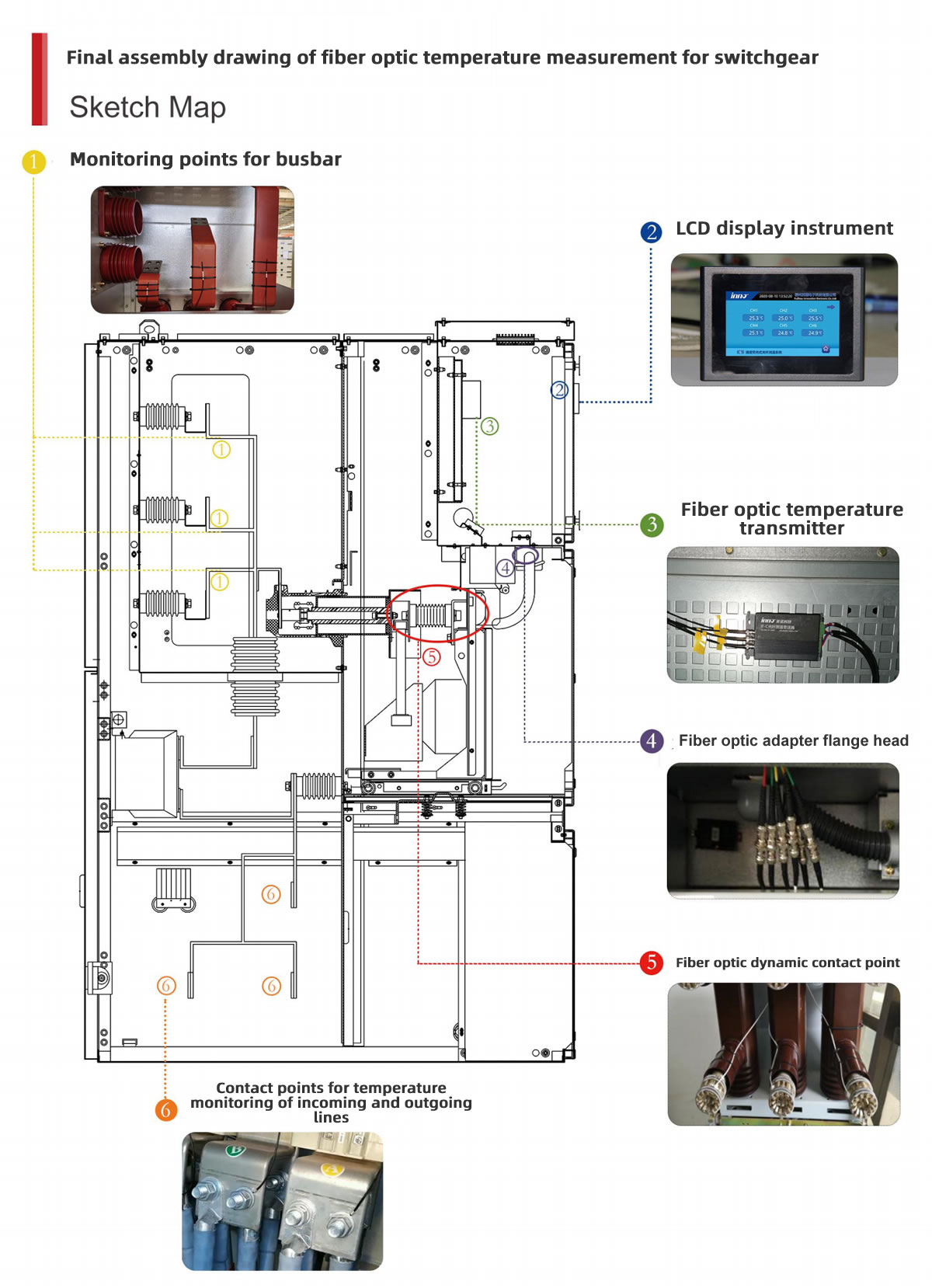

The temperature measurement system of the switchgear includes:
1. เซ็นเซอร์อุณหภูมิไฟเบอร์ออปติก;
2. Fiber optic temperature measurement transmitter;
3. LCD display instrument (เสริม);
4. Fiber optic temperature measurement system software (เสริม);
5. Other accessories.

Our company has actual application cases of high-voltage switchgear monitoring systems, which can be directly put into use.

The fiber optic temperature measurement system adopts internationally advanced fluorescent fiber optic temperature sensing technology, which has the advantages of high voltage resistance, ไม่มีการรบกวนทางแม่เหล็กไฟฟ้า, ความปลอดภัยที่แท้จริง, long-term reliability, and easy expansion. It can monitor the temperature of monitoring points such as generators, high-voltage switchgear, ring main cabinets, outdoor and underground cable joints in the power generation and supply system in real-time online.

Function of fiber optic temperature measurement system for switchgear
1. It can continuously monitor the temperature information of easily hot spots such as switchgear contacts, circuit breakers, บัสบาร์, and incoming and outgoing lines in real-time.
2. Using various diagnostic methods to analyze the health status of equipment, including all device parameter limit exceeding alarms, การวิเคราะห์, and other judgment methods.
3. Provide sound and light alarms, dry contact output, human-machine interface display of alarm information, ฯลฯ.
4. Provide an upper computer software system to display real-time information on various contacts of the current switchgear, as well as historical data on temperature information of each contact in the past month.
