Pengontrol suhu kanggo trafo jinis garing yaiku pengontrol cerdas sing dirancang khusus kanggo operasi aman trafo jinis garing.. Pengontrol suhu nggunakake teknologi mikrokontroler lan nggunakake termistor platinum sing dipasang ing belitan trafo jinis garing kanggo ndeteksi lan nampilake kenaikan suhu saka belitan trafo.. Bisa kanthi otomatis miwiti lan mungkasi penggemar cooling kanggo meksa cooling online saka nduwurke tumpukan, Nyingkiri utawa ngurangi bentet disebabake suhu dhuwur ing trafo. Iku uga bisa ngontrol output saka liwat suhu weker lan liwat suhu trip kanggo mesthekake yen trafo makaryakke ing negara aman, kanthi mangkono ndawakake umur kerja trafo.
Pilihan Produk:
| model | fungsi |
| BWDK-PQ201D |
|
| BWDK-PQ201E | 4-20output mA kanggo integrasi karo sistem SCADA |
| BWDK-PQ201F | RS485 utawa RS232 fungsi komunikasi serial. |
| BWDK-PQ201G | Sensor tambahan ditambahake kanggo ngukur suhu sekitar |
| BWDK-PQ201I | Sensor tambahan ditambahake kanggo ngukur suhu lembaran baja silikon |
| BWDK-PQ201L | Gagal fase kipas |
| BWDK-PQ201H | Nambah pangukuran kelembapan lingkungan |
| BWDK-PQ201C | PTC150 thermistor combined with PT100 for over temperature trip interlock control; PTC150 and PTC130 thermistors combined with PT100 for over temperature trip interlock control; |
| BWDK-PQ201TH | Telung pangayoman (anti jamur, anti lembab, lan semprotan anti uyah) |
Example: BWDK-PQ201F, PQ represents the extended embedded temperature control box, 2 represents the AC220V working power supply, lan 3 represents the AC380V working power supply, F represents function code (Komunikasi RS485)
The function codes can be combined according to the requirements, in the order of E F、G、aku、L、H、C、TH， If it only contains L H. C. TH function, D needs to be added before the code name.
Yen ana syarat teknis utawa fungsional khusus liyane, such as Ethernet communication Profibus communication, pangukuran suhu multi-saluran, pangukuran suhu serat optik, lsp. can all be contacted with us.
Finished product drawing and installation dimension diagram of BWDK-PQ embedded temperature control box (extended)

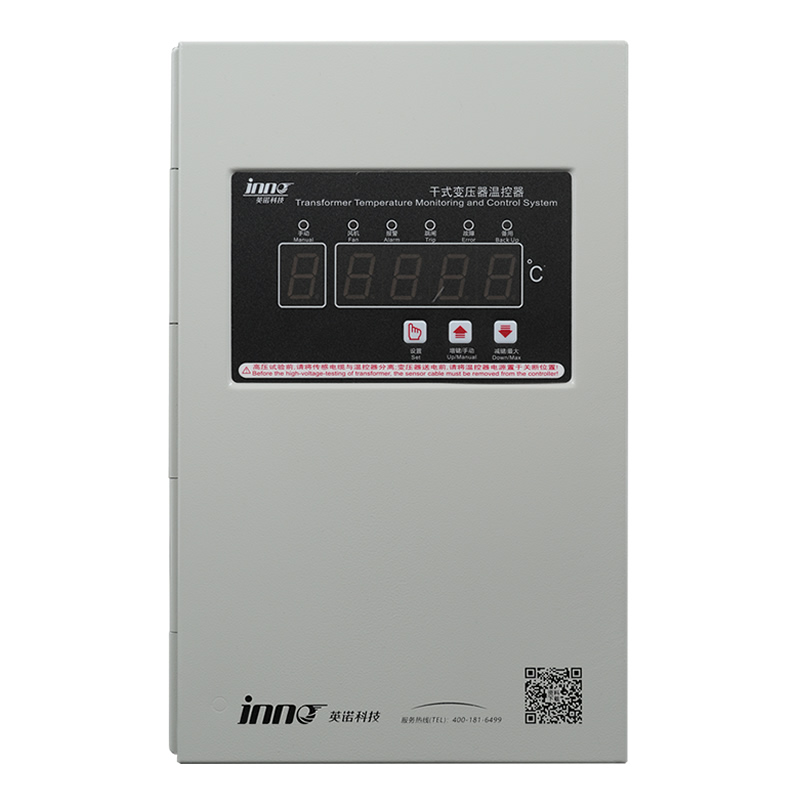

Appearance of BWDK-PQ embedded temperature control box (extended) product
Ukuran njaba: 324x200x85mm (length x width x height)
BWDK-PQ installation method: embedded
Embedded installation hole size: 182mm x 296mm
