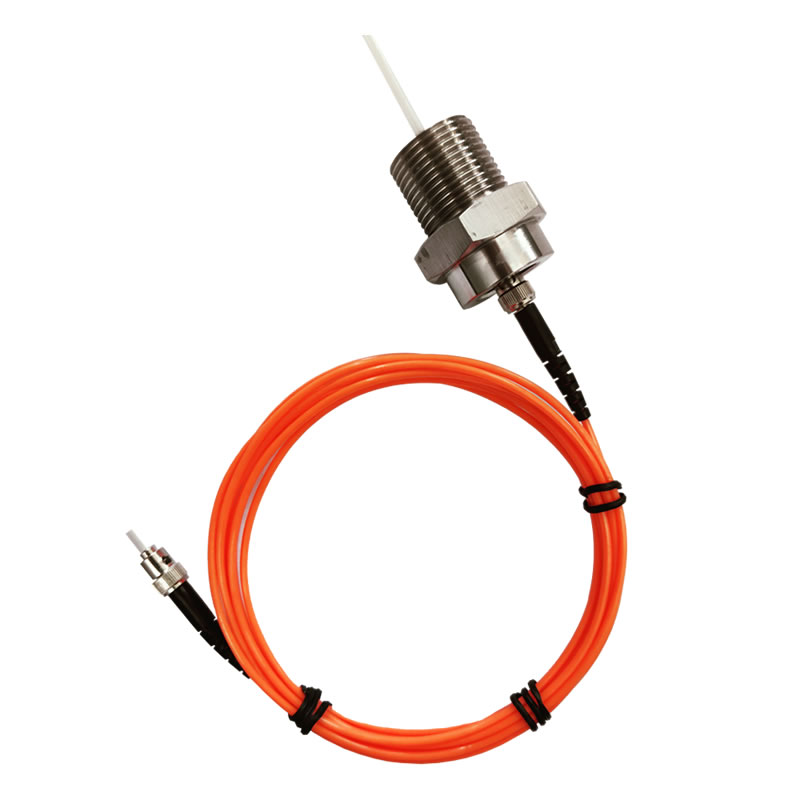

Armored Fluorescent Fiber Optic Temperature Sensor for Oil-Immersed Transformer Windings

Conventional transformer temperature monitoring methods have significant limitations compared to fiber optic technology:

• Indirect Measurement: Traditional methods like top oil temperature measurements and thermal models only provide estimates of winding temperatures, often with errors of 10-15°C or more. Fiber optic sensors measure the actual temperature directly at the winding hot spots.
• Electromagnetic Interference: Conventional electrical sensors are susceptible to electromagnetic interference from the intense magnetic fields within transformers. Fiber optic sensors are completely immune to EMI, providing reliable readings in all operating conditions.
• Electrical Safety: Introducing electrical sensors into a high-voltage environment creates potential failure points and safety concerns. Fiber optic sensors are inherently non-conductive and cannot introduce electrical hazards.
• Response Time: Thermal wells and oil measurements have significant lag times (often 30+ minutes) in detecting winding temperature changes. Fiber optic sensors respond within seconds to temperature changes, providing true real-time monitoring.
• Localized Measurement: Traditional methods cannot detect localized hot spots that may develop in specific winding areas. Fiber optic sensors can be placed at multiple critical locations to create a complete thermal profile of the windings.
• Dynamic Loading: Accurate direct temperature measurement enables more aggressive dynamic loading of transformers without exceeding thermal limits, potentially increasing capacity by 10-15% compared to conservative estimations based on traditional methods.

These advantages make fiber optic temperature sensing the preferred technology for critical power transformers, especially in high-value applications where reliability and asset life are paramount concerns.

Fiber optic sensors are installed during the transformer manufacturing process in collaboration with the transformer manufacturer. The typical installation process includes:

1. Design Phase: Critical hot-spot locations are identified through thermal modeling and design analysis, typically in the high-voltage windings and areas with restricted cooling
2. Sensor Preparation: Armored fiber optic sensors of appropriate length are prepared with protective coatings compatible with transformer insulating materials and fluids
3. Winding Integration: During the winding manufacturing process, sensors are carefully positioned at the predetermined hot-spot locations and secured to ensure they remain in position
4. Routing: Fiber optic cables are routed through the transformer structure using specially designed paths that maintain mechanical integrity and clearance distances
5. Feedthrough Installation: Specialized oil-tight feedthroughs are installed on the transformer tank to allow the fiber optic cables to exit while maintaining the sealed environment
6. Extension Connection: Outside the transformer, extension cables connect the sensors to the demodulator unit typically mounted in the control cabinet

The entire installation process is performed under strict quality control to ensure the sensors do not compromise the transformer's electrical or mechanical integrity while providing optimal temperature measurement capability.

The ROI for implementing fiber optic temperature monitoring in transformers is typically excellent, with benefits in several key areas:

• Extended Transformer Life: Precise thermal management can extend transformer life by 5-10 years. For a large power transformer costing $2-5 million, this represents significant capital savings and deferred replacement costs.
• Increased Loading Capacity: Direct hot-spot measurement enables safe operation closer to thermal limits, potentially increasing transformer capacity by 10-15% compared to conservative estimations. This can defer or eliminate the need for additional transformers in growing networks.
• Prevented Failures: Early detection of developing thermal issues can prevent catastrophic failures. The cost of a major transformer failure can exceed $10 million when considering replacement cost, emergency response, environmental cleanup, and lost revenue.
• Optimized Maintenance: Condition-based maintenance scheduling based on actual thermal performance data typically reduces maintenance costs by 15-25% compared to time-based approaches.
• Reduced Insurance Premiums: Many insurers offer reduced rates for transformers equipped with advanced monitoring systems, recognizing the lower risk profile.

For most power transformers, the ROI period ranges from 2-5 years, with critical infrastructure applications often seeing ROI in less than two years. FJINNO can provide a customized ROI calculation based on your specific transformer value, criticality, and operating conditions.

While fiber optic winding temperature sensors are ideally installed during transformer manufacturing, FJINNO offers several alternatives for existing transformers:

1. During Refurbishment: When transformers undergo major refurbishment or rewinding, fiber optic sensors can be integrated into the rebuilt windings
2. External Hot-Spot Monitoring: For existing transformers, specialized external fiber optic sensors can monitor critical external connection points, bushings, and oil temperatures
3. Hybrid Monitoring Solutions: FJINNO offers systems that combine external fiber optic measurements with advanced thermal modeling to provide improved hot-spot estimation compared to conventional methods
4. Retrofit During Maintenance: In some cases, limited sensor installation may be possible during scheduled maintenance openings, particularly for accessible areas

Our engineering team can evaluate your specific transformer to recommend the most effective monitoring approach for existing units, balancing the benefits of enhanced temperature monitoring with practical installation considerations.

FJINNO's fiber optic temperature monitoring solutions offer several advantages over competitive systems:

Additionally, FJINNO's dedicated focus on power equipment monitoring applications ensures that our solutions are specifically optimized for the unique requirements of transformer temperature monitoring, rather than adapted from general-purpose temperature sensing technologies.
